Product Description

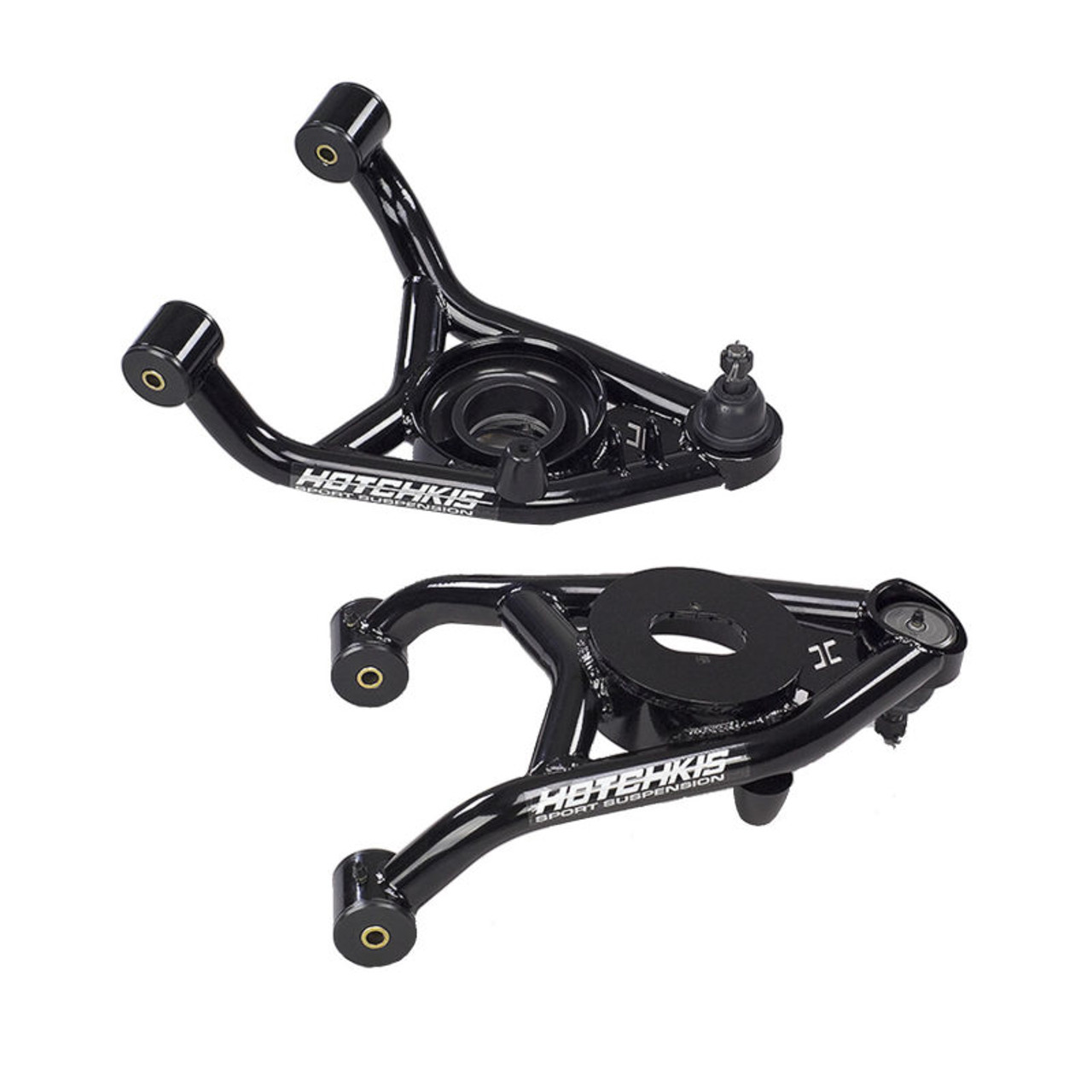

Hotchkis Sport Suspension 1104-B 1964-1972 GM A-Body Tubular Lower Control Arms - w/ Balljoint for B or F Body Spindle. Install the Geometry Corrected Hotchkis Tubular Lower A-Arms on your 64-72 GM A-Body including Chevelle El Camino GTO and 442 and gain vastly increased handling and control. These TIG-welded bolt-on control arms offer ride height adjustment for ultimate performance and a great look regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move through their travel easily. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and Delrin bushings. Exceptional handling performance when combined with the Hotchkis Tubular Upper A-Arms. Note: This kit has a special balljoint installed and is to be used for vehicles that have converted to GM B or F Body Spindles Only. For stock spindle applications please use item 1104. Features: 100% TIG-welded 1.5 in. tubular steel construction. CNC machined inset spring cup. Precision aluminum ride height adjustment shims. Polyurethane coil spring isolators. Easy to lubricate Delrin bushings. Lower ball joint installed. Laser cut Hotchkis logo. Gloss black powder coat finish. Includes Rod End style end links. Benefits: CAD designed and analyzed by FEA software for ultimate strength. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow for .25 in. to .50 in. ride height adjustment. Additional shims available separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Want to learn more about A-Arms? Visit our FAQ at www.hotchkis.netThis Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965-1966 | Buick | Gran Sport | Base |
| 1967 | Buick | Gran Sport | Base |
| 1970-1972 | Buick | GS | Base |
| 1968-1969 | Buick | GS 350 | Base |
| 1968-1969 | Buick | GS 400 | Base |
| 1970-1972 | Buick | GS 455 | Base |
| 1970 | Buick | GS 455 | GSX |
| 1970 | Buick | Skylark | 350 |
| 1970 | Buick | Skylark | 350 |
| 1972 | Buick | Skylark | 350 |
| 1964 | Buick | Skylark | Base |
| 1964-1965 | Buick | Skylark | Base |
| 1965 | Buick | Skylark | Base |
| 1966 | Buick | Skylark | Base |
| 1967-1968 | Buick | Skylark | Base |
| 1968 | Buick | Skylark | Base |
| 1969 | Buick | Skylark | Base |
| 1970 | Buick | Skylark | Base |
| 1970-1971 | Buick | Skylark | Base |
| 1972 | Buick | Skylark | Base |
| 1968 | Buick | Skylark | Custom |
| 1968 | Buick | Skylark | Custom |
| 1969 | Buick | Skylark | Custom |
| 1970 | Buick | Skylark | Custom |
| 1970-1971 | Buick | Skylark | Custom |
| 1972 | Buick | Skylark | Custom |
| 1964-1965 | Buick | Special | Base |
| 1966-1967 | Buick | Special | Base |
| 1968-1969 | Buick | Special | Base |
| 1964 | Buick | Special | Deluxe |
| 1965 | Buick | Special | Deluxe |
| 1966 | Buick | Special | Deluxe |
| 1967 | Buick | Special | Deluxe |
| 1967 | Chevrolet | Chevelle | 300 |
| 1968 | Chevrolet | Chevelle | 300 |
| 1968 | Chevrolet | Chevelle | 300 |
| 1967 | Chevrolet | Chevelle | 300 Deluxe |
| 1968 | Chevrolet | Chevelle | 300 Deluxe |
| 1968-1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1964 | Chevrolet | Chevelle | Base |
| 1964 | Chevrolet | Chevelle | Base |
| 1965 | Chevrolet | Chevelle | Base |
| 1965-1967 | Chevrolet | Chevelle | Base |
| 1967 | Chevrolet | Chevelle | Base |
| 1968 | Chevrolet | Chevelle | Base |
| 1970 | Chevrolet | Chevelle | Base |
| 1970-1972 | Chevrolet | Chevelle | Base |
| 1967 | Chevrolet | Chevelle | Concours |
| 1967 | Chevrolet | Chevelle | Concours |
| 1968 | Chevrolet | Chevelle | Concours |
| 1968-1969 | Chevrolet | Chevelle | Concours |
| 1970 | Chevrolet | Chevelle | Concours |
| 1970-1972 | Chevrolet | Chevelle | Concours |
| 1969 | Chevrolet | Chevelle | Concours Estate |
| 1969 | Chevrolet | Chevelle | Concours Estate |
| 1970 | Chevrolet | Chevelle | Concours Estate |
| 1970-1972 | Chevrolet | Chevelle | Concours Estate |
| 1965 | Chevrolet | Chevelle | Deluxe |
| 1965 | Chevrolet | Chevelle | Deluxe |
| 1966 | Chevrolet | Chevelle | Deluxe |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1969 | Chevrolet | Chevelle | Greenbrier |
| 1969 | Chevrolet | Chevelle | Greenbrier |
| 1970 | Chevrolet | Chevelle | Greenbrier |
| 1970-1972 | Chevrolet | Chevelle | Greenbrier |
| 1968 | Chevrolet | Chevelle | Malibu |
| 1968-1969 | Chevrolet | Chevelle | Malibu |
| 1970 | Chevrolet | Chevelle | Malibu |
| 1970-1972 | Chevrolet | Chevelle | Malibu |
| 1968 | Chevrolet | Chevelle | Nomad |
| 1968-1969 | Chevrolet | Chevelle | Nomad |
| 1970 | Chevrolet | Chevelle | Nomad |
| 1970-1972 | Chevrolet | Chevelle | Nomad |
| 1964 | Chevrolet | Chevelle | SS |
| 1964 | Chevrolet | Chevelle | SS |
| 1965 | Chevrolet | Chevelle | SS |
| 1965-1969 | Chevrolet | Chevelle | SS |
| 1967 | Chevrolet | Chevelle | SS |
| 1968 | Chevrolet | Chevelle | SS |
| 1970 | Chevrolet | Chevelle | SS |
| 1970-1972 | Chevrolet | Chevelle | SS |
| 1964 | Chevrolet | El Camino | Base |
| 1964-1965 | Chevrolet | El Camino | Base |
| 1966 | Chevrolet | El Camino | Base |
| 1966-1969 | Chevrolet | El Camino | Base |
| 1967 | Chevrolet | El Camino | Base |
| 1968 | Chevrolet | El Camino | Base |
| 1970 | Chevrolet | El Camino | Base |
| 1970-1972 | Chevrolet | El Camino | Base |
| 1968 | Chevrolet | El Camino | Custom |
| 1968-1969 | Chevrolet | El Camino | Custom |
| 1970 | Chevrolet | El Camino | Custom |
| 1970-1972 | Chevrolet | El Camino | Custom |
| 1968-1969 | Chevrolet | El Camino | SS |
| 1970-1972 | Chevrolet | El Camino | SS |
| 1964 | Chevrolet | Malibu | Base |
| 1964 | Chevrolet | Malibu | Base |
| 1965 | Chevrolet | Malibu | Base |
| 1965-1967 | Chevrolet | Malibu | Base |
| 1967 | Chevrolet | Malibu | Base |
| 1970 | Chevrolet | Monte Carlo | Base |
| 1970-1972 | Chevrolet | Monte Carlo | Base |
| 1964 | Oldsmobile | 442 | Base |
| 1965-1967 | Oldsmobile | 442 | Base |
| 1968 | Oldsmobile | 442 | Base |
| 1969-1971 | Oldsmobile | 442 | Base |
| 1964 | Oldsmobile | Cutlass | Base |
| 1965-1967 | Oldsmobile | Cutlass | Base |
| 1967 | Oldsmobile | Cutlass | Base |
| 1968 | Oldsmobile | Cutlass | Base |
| 1968 | Oldsmobile | Cutlass | Base |
| 1969 | Oldsmobile | Cutlass | Base |
| 1970-1971 | Oldsmobile | Cutlass | Base |
| 1972 | Oldsmobile | Cutlass | Base |
| 1972 | Oldsmobile | Cutlass | Cruiser |
| 1972 | Oldsmobile | Cutlass | Cruiser |
| 1964 | Oldsmobile | Cutlass | Holiday |
| 1965-1967 | Oldsmobile | Cutlass | Holiday |
| 1968 | Oldsmobile | Cutlass | S |
| 1971 | Oldsmobile | Cutlass | S |
| 1972 | Oldsmobile | Cutlass | S |
| 1967 | Oldsmobile | Cutlass | Turnpike Cruiser |
| 1967 | Oldsmobile | Cutlass | Turnpike Cruiser |
| 1971 | Oldsmobile | Cutlass Supreme | Base |
| 1972 | Oldsmobile | Cutlass Supreme | Base |
| 1964 | Oldsmobile | F85 | Base |
| 1964 | Oldsmobile | F85 | Base |
| 1965-1966 | Oldsmobile | F85 | Base |
| 1966 | Oldsmobile | F85 | Base |
| 1967 | Oldsmobile | F85 | Base |
| 1968 | Oldsmobile | F85 | Base |
| 1968-1969 | Oldsmobile | F85 | Base |
| 1970 | Oldsmobile | F85 | Base |
| 1971-1972 | Oldsmobile | F85 | Base |
| 1964 | Oldsmobile | F85 | Deluxe |
| 1964-1965 | Oldsmobile | F85 | Deluxe |
| 1966 | Oldsmobile | F85 | Deluxe |
| 1966 | Oldsmobile | F85 | Holiday |
| 1966 | Oldsmobile | F85 | Holiday |
| 1964 | Oldsmobile | Vista Cruiser | Base |
| 1964-1967 | Oldsmobile | Vista Cruiser | Base |
| 1968 | Oldsmobile | Vista Cruiser | Base |
| 1968-1969 | Oldsmobile | Vista Cruiser | Base |
| 1970-1971 | Oldsmobile | Vista Cruiser | Base |
| 1972 | Oldsmobile | Vista Cruiser | Base |
| 1964 | Oldsmobile | Vista Cruiser | Custom |
| 1964-1966 | Oldsmobile | Vista Cruiser | Custom |
| 1967 | Oldsmobile | Vista Cruiser | Custom |
| 1964-1966 | Pontiac | Grand Prix | Base |
| 1967-1969 | Pontiac | Grand Prix | Base |
| 1970-1972 | Pontiac | Grand Prix | Base |
| 1964 | Pontiac | GTO | Base |
| 1964-1966 | Pontiac | GTO | Base |
| 1967 | Pontiac | GTO | Base |
| 1967-1969 | Pontiac | GTO | Base |
| 1970 | Pontiac | GTO | Base |
| 1970-1972 | Pontiac | GTO | Base |
| 1970 | Pontiac | GTO | The Judge |
| 1970-1971 | Pontiac | GTO | The Judge |
| 1964 | Pontiac | LeMans | Base |
| 1964-1967 | Pontiac | LeMans | Base |
| 1966 | Pontiac | LeMans | Base |
| 1968 | Pontiac | LeMans | Base |
| 1968-1969 | Pontiac | LeMans | Base |
| 1970 | Pontiac | LeMans | Base |
| 1971 | Pontiac | LeMans | Base |
| 1972 | Pontiac | LeMans | Base |
| 1972 | Pontiac | LeMans | Luxury |
| 1972 | Pontiac | LeMans | Luxury |
| 1969 | Pontiac | LeMans | Safari |
| 1969 | Pontiac | LeMans | Safari |
| 1970,1973 | Pontiac | LeMans | Safari |
| 1970 | Pontiac | LeMans | Sport |
| 1970 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | Sport |
| 1972 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | T37 |
| 1971 | Pontiac | LeMans | T37 |
| 1964 | Pontiac | Tempest | Base |
| 1964-1967 | Pontiac | Tempest | Base |
| 1966 | Pontiac | Tempest | Base |
| 1968 | Pontiac | Tempest | Base |
| 1968-1970 | Pontiac | Tempest | Base |
| 1964 | Pontiac | Tempest | Custom |
| 1964 | Pontiac | Tempest | Custom |
| 1965 | Pontiac | Tempest | Custom |
| 1965 | Pontiac | Tempest | Custom |
| 1966-1967 | Pontiac | Tempest | Custom |
| 1968 | Pontiac | Tempest | Custom |
| 1968-1969 | Pontiac | Tempest | Custom |
| 1963-1965 | Pontiac | Tempest | Safari |
| 1968-1969 | Pontiac | Tempest | Safari |
