Product Description

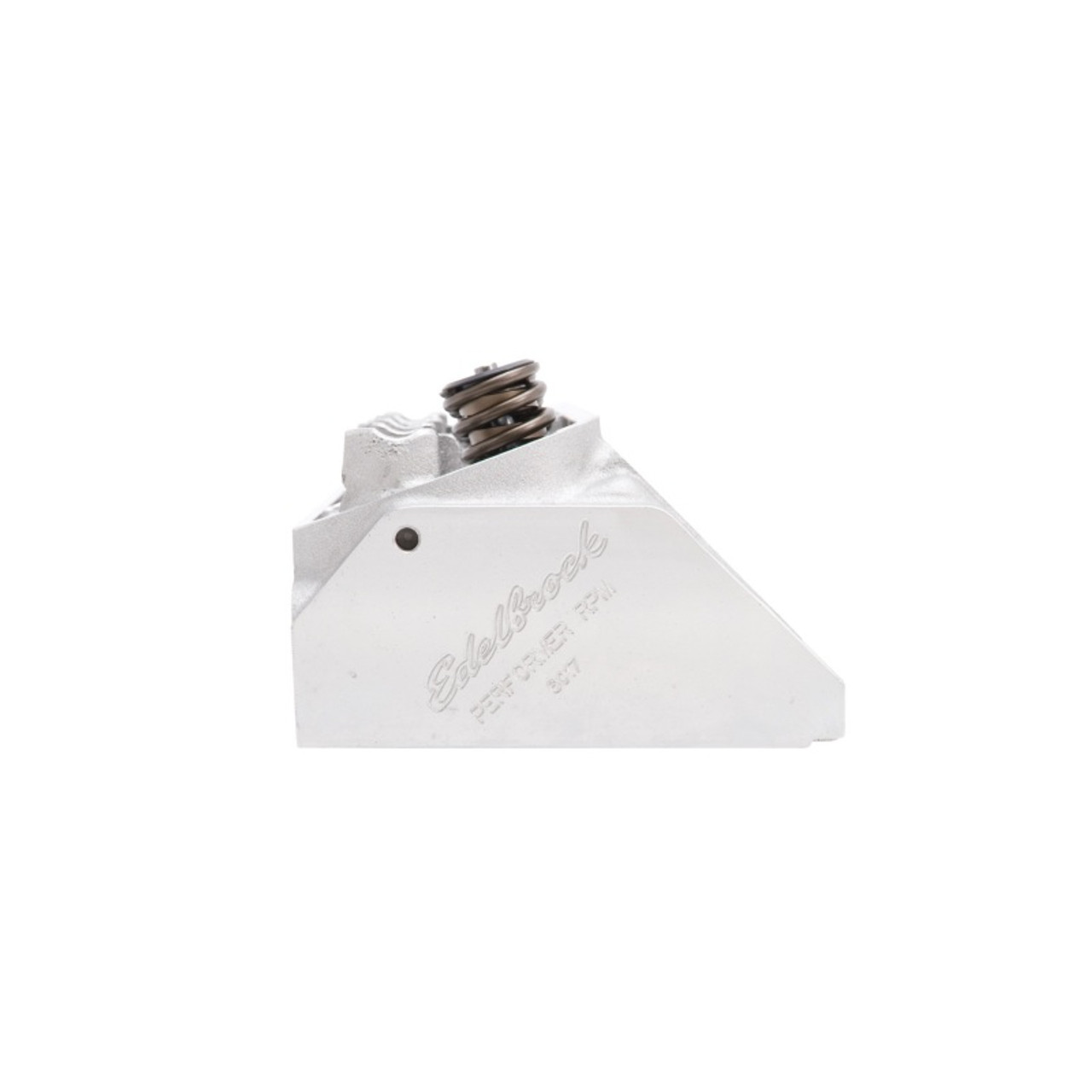

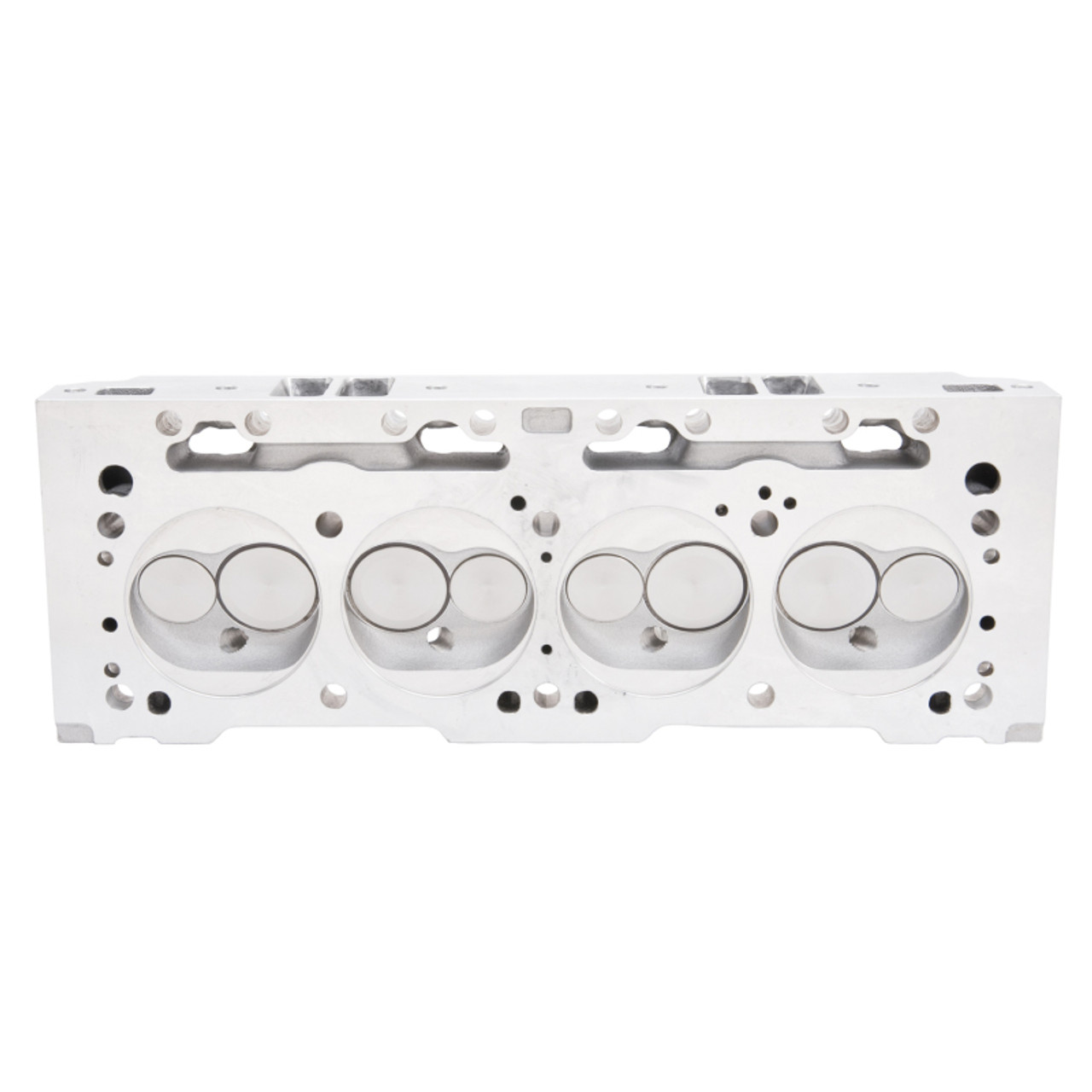

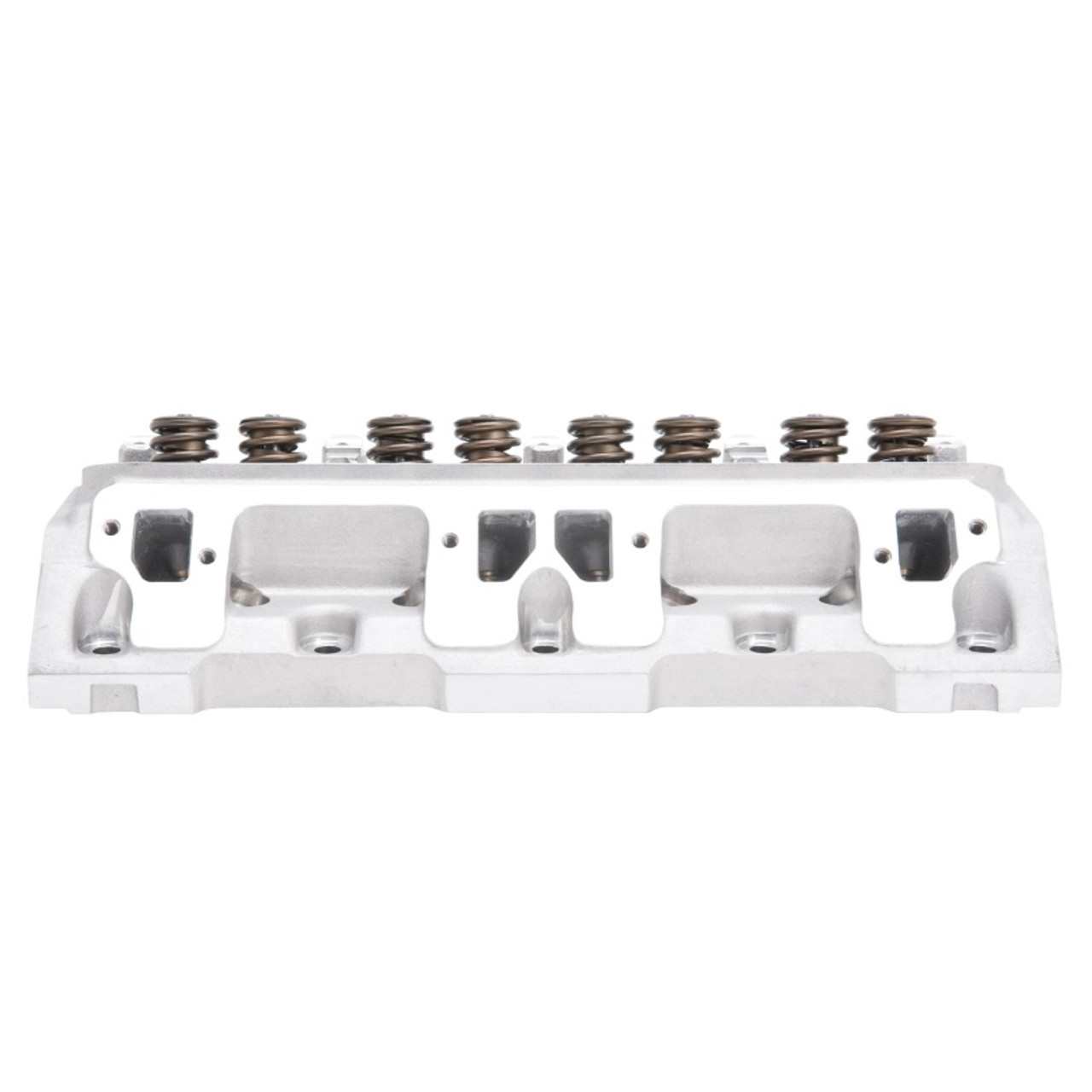

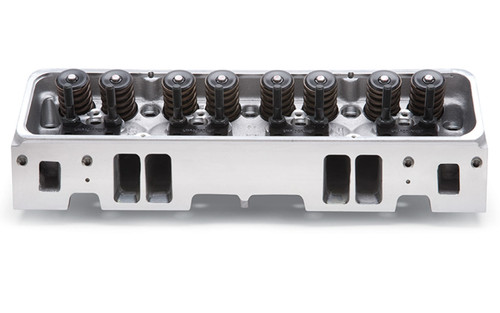

Cylinder Head Specifications: Combustion chamber volume: 63cc / 65cc; Intake runner volume: 171cc; Exhaust runner volume: 77cc; Intake valve diameter: 2.02"; Exhaust valve diameter: 1.60"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: N/A; Guideplate: N/A; Pushrod diameter: 5/16"; Valve angle: 18°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. * The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads. Match with Edelbrock head gasket sets. Bare heads will have valve guides & seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8", pushrod diameter: 5/16".This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970-1973 | Dodge | Challenger | Base |
| 1970-1971 | Dodge | Challenger | R/T |
| 1972 | Dodge | Challenger | Rallye |
| 1970 | Dodge | Challenger | T/A |
| 1970-1971 | Dodge | Charger | 500 |
| 1970-1973 | Dodge | Charger | Base |
| 1971-1973 | Dodge | Charger | Special Edition |
| 1971 | Dodge | Charger | Super Bee |
| 1970 | Dodge | Coronet | 440 |
| 1970 | Dodge | Coronet | 500 |
| 1970-1973 | Dodge | Coronet | Base |
| 1971 | Dodge | Coronet | Brougham |
| 1971-1973 | Dodge | Coronet | Crestwood |
| 1971-1973 | Dodge | Coronet | Custom |
| 1970 | Dodge | Coronet | Deluxe |
| 1970 | Dodge | Coronet | Super Bee |
| 1968 | Dodge | Dart | 270 |
| 1968-1973 | Dodge | Dart | Base |
| 1969-1973 | Dodge | Dart | Custom |
| 1971-1972 | Dodge | Dart | Demon |
| 1971-1972 | Dodge | Dart | Demon 340 |
| 1968-1969 | Dodge | Dart | GT |
| 1968-1969 | Dodge | Dart | GTS |
| 1971-1973 | Dodge | Dart | Special |
| 1973 | Dodge | Dart | Sport |
| 1973 | Dodge | Dart | Sport 340 |
| 1969-1973 | Dodge | Dart | Swinger |
| 1972-1973 | Dodge | Polara | Base |
| 1972-1973 | Dodge | Polara | Custom |
| 1968-1973 | Plymouth | Barracuda | Base |
| 1970-1971 | Plymouth | Barracuda | Gran Coupe |
| 1971 | Plymouth | Belvedere | Base |
| 1971 | Plymouth | Belvedere | Satellite |
| 1970-1973 | Plymouth | Cuda | Base |
| 1970-1973 | Plymouth | Duster | 340 |
| 1970-1973 | Plymouth | Duster | Base |
| 1968,1971-1973 | Plymouth | Road Runner | Base |
| 1968-1969,1971-1973 | Plymouth | Satellite | Base |
| 1971 | Plymouth | Satellite | Brougham |
| 1971-1973 | Plymouth | Satellite | Custom |
| 1971-1973 | Plymouth | Satellite | Regent |
| 1971-1973 | Plymouth | Satellite | Sebring |
| 1971-1973 | Plymouth | Satellite | Sebring Plus |
| 1970 | Plymouth | Satellite | Sport |
| 1968-1969 | Plymouth | Valiant | 100 |
| 1970-1973 | Plymouth | Valiant | Base |
| 1968-1969 | Plymouth | Valiant | Signet |
Product Videos
Custom Field
MPN 60175
