Product Description

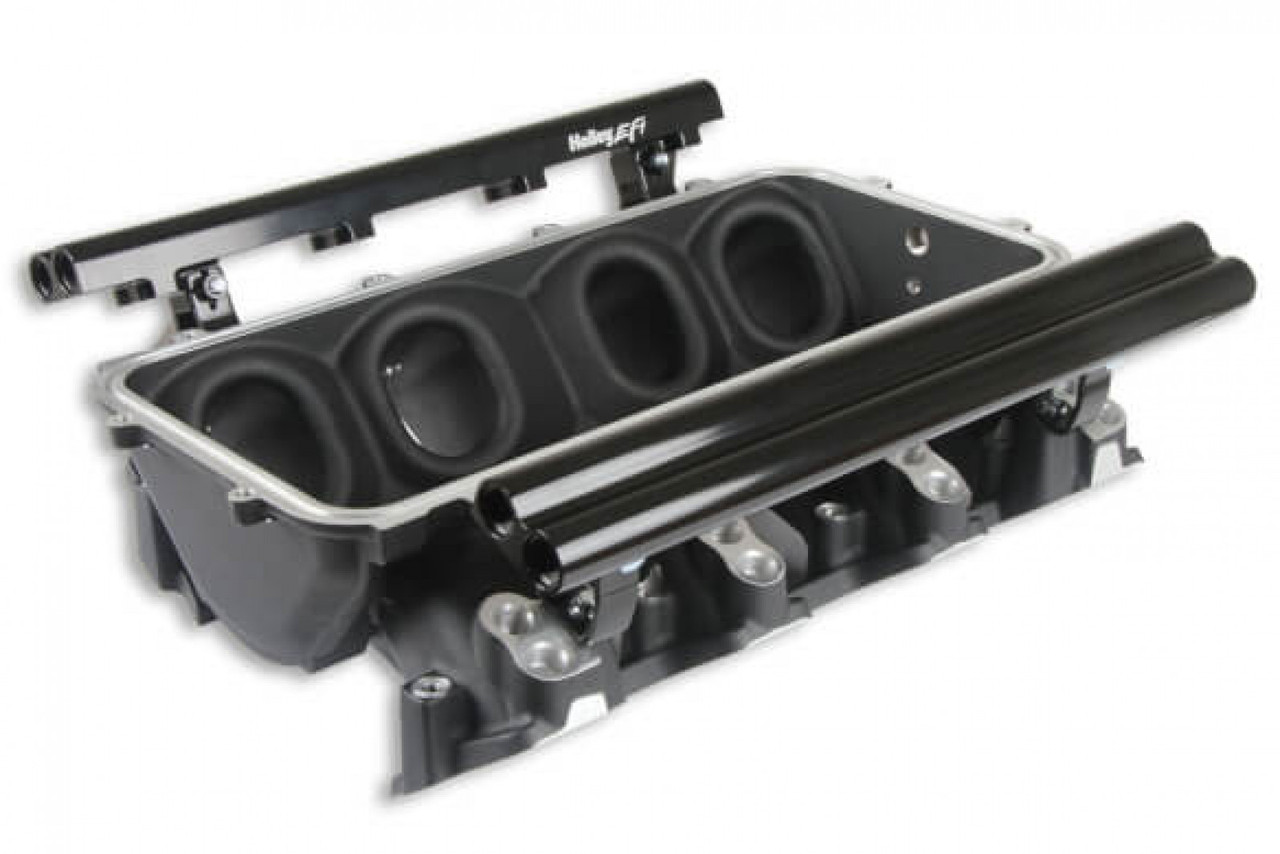

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads. The 300-601 & 300-601BK front-feed, base-lower intake manifold provides two injectors per cylinder for hi-volume fuel demands, flexible fuel supply strategies, and dual-fuel capability. Offering this base intake manifold with fuels rails separately allows you to select your components individually as you build your induction system. Complete top-feed manifold kits are also available with dual fuel injectors, see P/N's 300-624 & 300-624BK. The top-feed, short runner, low-profile base intake manifold was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. Top-feed throttle body tops are available as a machined casting 300-246 & 300-246BK which are configured for a 105mm throttle body, see Holley P/N 112-581 or similar models. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors. Holley Lo-Ram intake manifold kits include all the sealing o-rings, plugs, and fasteners required for the installation of the kit.
Features
- Plug and Play with 1987-1993 Fox Body Mustangs, powered by the factory 302ci Small Block Ford, with the stock TFI Distributor
- This Kit contains an ECU Mounting Bracket - TFI Ignition Adapter - a Fox Body specific engine main harness, as well as MAT and CTS sensors
- Includes EV1 Injector Harness, which will directly replace the old, brittle, factory Ford Injector harness
- High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors
- All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control
- Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths) –
- For Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector pre-terminated.
- Plug and play ignition capability with Dual Sync and HyperSpark Distributors, adapter 558-323 required for HyperSpark Distributors for those of you wanting to upgrade your ignition system.
- The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any Ford V8 engine.
- Additionally the handheld provides internal data-logging and a fully customizable gauge display.
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
- 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal – Cam Signal, allowing you to identify any Critical engine issues at a glance
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
- The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
- Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, 12.3" digital dash support!
- Free EFI Tuning Software for complete control of your Terminator X power plant
