Product Description

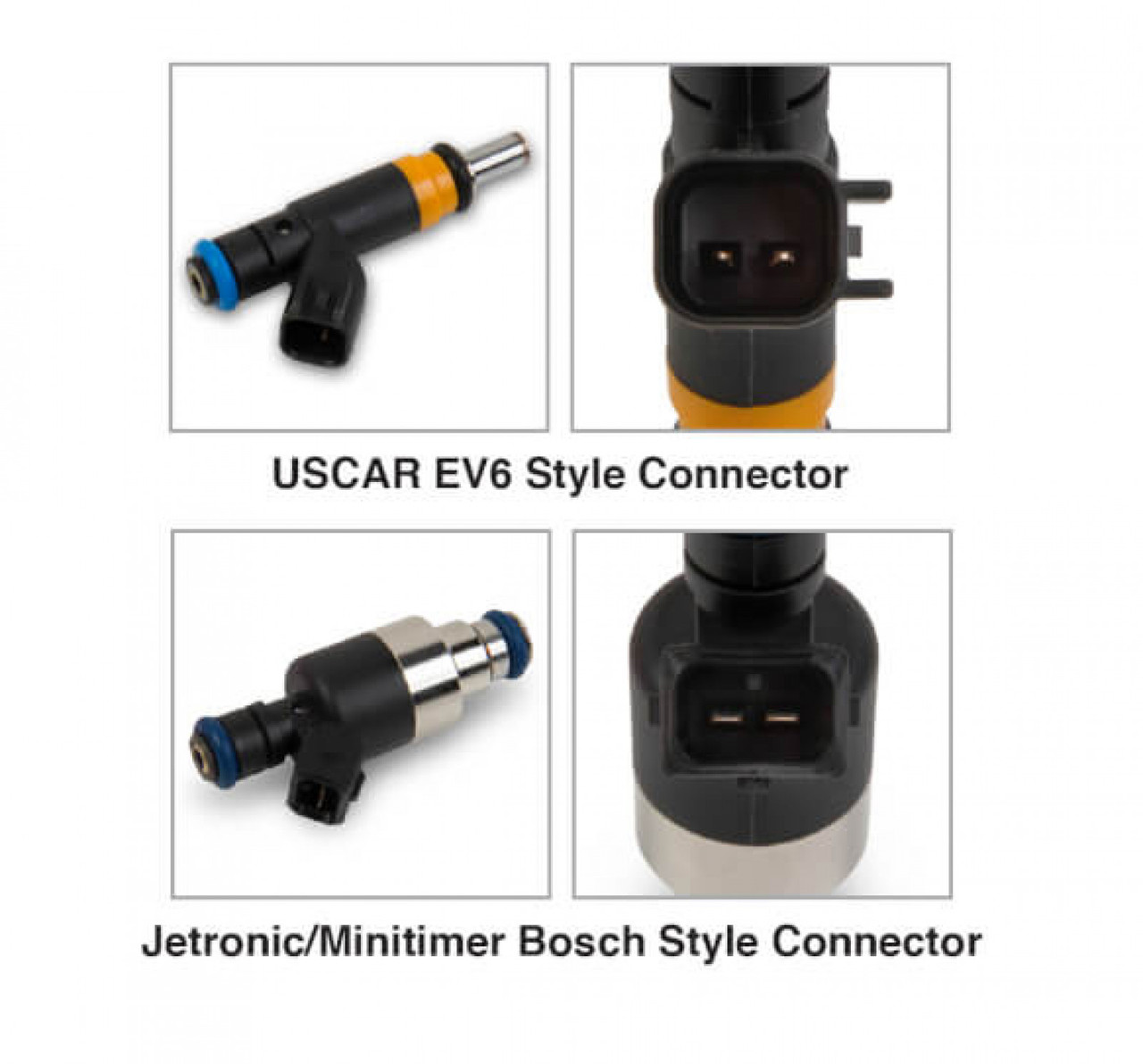

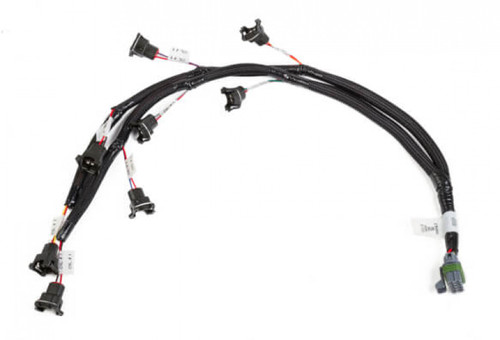

An Injector Harness is required and Holley offers two. The harness with USCAR/Stock injector connectors will cover most applications that are using the factory injectors. The other harness is for the Bosch and Holley (or Jetronic/Minitimer) injector connector that is commonly used in aftermarket applications for larger injectors. View the image gallery to see images of both types of injectors.Features
- Bolt on 4500 Flange Carburetor Replacement
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- 2.125” Throttle Plates, Flow 1440 CFM for large cubic inch engines
- Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
- External fuel pressure regulator required, such as 12-848
- Integrated ignition timing control
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- OEM Style TPS/IAC, for years of dependable service.
- Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths) - or for Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash; CAN EGT; and Digital Analog style EFI gauges
- Available in 2 finishes, Shiny and Black
Product Videos
Custom Field
CARB_compliant yes
