Product Description

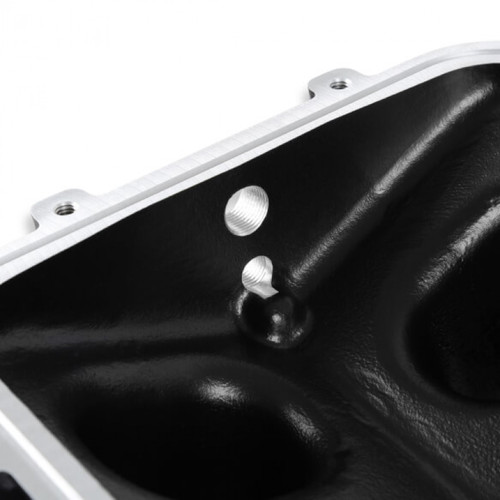

The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Cast aluminum construction.
• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Features
- Standalone digital dashes for installation in most any vehicle – no ECU or fuel injection required.o As easy to install as traditional gauges!
- Two models available:
- 6.86” version is big on features, but small on size for installation almost anywhere!
- 12.3” version is for the hard-core enthusiast who wants the ultimate display device!
- High resolution, state-of-the-art, multi-gauge touch-screen display with fully configurable layouts:
- Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips – day or night – no stylus needed
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- 16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts
- Built-in GPS with speed, odometer and trip odometer function (external antenna included)
- Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86” dash only)
- Rendered analog (dials / needles) and digital gauge styles available
- Integrated datalogger
- Rugged, water resistant case is constructed of cast aluminum for long life and durability
- Plug and play features are pre-configured in the harness and include dash layouts / screens for::
- Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included)
- Turn signals
- High beam
- Fuel level
- Engine vacuum / boost
- Additional input and output functionality:
- 13 multi-configurable inputs
- 4 ground switched outputs
- Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input
- User definable channel alarms and warnings
- Communications / Harness:
- 4 Pin Wiring Harness contains Power, Ground and CANbus connections
- Holley EFI CANbus connection for expanded capability with Holley EFI systems
- Expandable storage via USB
- Integrated Datalogger:
- Internal Log Memory – 1 GB (expandable up to 32GB with addition of micro-SD card)
- External Logging to USB Flash Drive is also available for easy file management
- On-screen datalog playback allows you to review vital run information right on the dash
- Full analysis via laptop is available. Simply download the file to a USB drive and view with the free datalog viewer at Holley.com
- Flexible mounting options: Surface or flush mounting, with high quality hardware included
- Simple setup and programming: USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
- Fully Upgradeable:
- Upgradable with future software enhancements
- Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost
- Compatible with Holley EFI Plug and Play Programmable Shift Light - Part Number 553-107
- What’s Included:
- Both dash versions include harness / cables, mounting hardware, USB memory stick and CAN terminator
- GPS Antenna
- Sensors not included
